Bicycle Parts / HUB / Moyeux / Mazas

SIO-401 SIO-402 SIO-403

SIO-401 PHILLIPS TYPE OPEN END

Thick Barrel With Open Ends.
Front : 3/8" X 6", 32/36H, X 14G & 12G, Rear : 3/8" X 7", 36/40H, X 14G & 12GThread : 34.8" X 24TPI Lubricator Hole & Clip To Order.

SIO-402 RALEIGH / FRENCH TYPE

Thin Barrel With Open Ends.
Front:
5/16" X 6", 28/32/36H Rear: 3/8" X 7” 28/36/40H, 14G & 12G Thread : 34.8" X 24TPI / M35 X 1 mm / 34.7 X 1 mm. Lubricator Hole & Clip To Order.

SIO-403 MTB OVAL TYPE WITH Q/R

Open Ends. Front : 10 mm X 102, 108 & 110 mm.
Rear : 10 mm X 136 & 138 mm With Spacer Thread : 34.8" X 24 TPI BSCY. Spoke Hole : 28 / 36H X 12G / 14G.
Finish : Coloured Powder Coated.

SIO-404 SIO-405 SIO-406

SIO-404 BMX OVAL TYPE / MULTISPEED

Open Ends. Front : 3/8" X 6", 16 / 20 / 28 / 32 /36h X 14g. Rear : 3/8" x 7", 3/8" X 7-1/2", 16 / 20 / 28 / 40 /36h With Or Without Spacer To Order. Thread : 34.8" X 24 TPI BSCY.

SIO-405 PARALLAX TYPE

Open Ends. Front : 3/8" X 6", 16 / 20 / 28 / 32 /36h X 14g. Rear : 3/8" x 7", 3/8" X 7-1/2", 16 / 20 / 28 / 40 /36h With Or Without Spacer To Order. Thread : 34.8" X 24 TPI BSCY.

SIO-406 COASTER TYPE

Coaster Brake Hub With 18T / 20T Sprockets.
Axle: 3/8” X 6-1/2”, 36/40 Holes.

SIO-407 HUB REAR SAWAN GOLD

3/8" X 7.1/2" HD 3MM THICK FLANGE, 14G/12G X 40H/36H WITH FLANGE NUT THREAD ON BOTH SIDE

SIO-411 SIO-412 SIO-413

SIO - 411 QUICK RELEASE

Hub Axles Holo With Q/R. Front : 3/8" X 102/108 mm or 110 mm. Rear : 3/8" X 136 mm or 138 mm. Plastic Moulded Lever& Adjustable Nut. Finish : Black / ZP to Order.

SIO - 412 RALEIGH TYPE

Front : 5/16" X 5-1/2"/6" (Set of 9) With Groove. Rear : 3/8" X 6-1/2"/7" 26TPI (Set of 9). Finish : Black / ZP / BNP to Order.

SIO - 413 PHILLIPS TYPE

Front : 3/8"x 5-1/2"/6" (Set of 7). Rear : 3/8'' x 6-1/2"/7"/7-1/2''(Set of 9/Set of 7). Finish : Black / ZP / BNP to Order.

SIO-414 SIO-415 SIO-416 SIO-417


SIO - 414 HUB SPINDLE

Front : 5/16" X 5-1/2". Rear : 3/8" X 6-1/2". Complete Cone With Dust Cap, Nut & Washer. Finish : Black/ZP/BNP.

SIO - 415 "A" MODEL

Front : 5/16" X 5-1/2"/6" (Set of 7). Rear : 3/8" X 6-1/2"/7" (Set of 7). Finish : Black / ZP / BNP Available to Order.

SIO - 416 MTB (MULTISPEED)

Hub Axle Rear : 3/8" X 7-1/2", With Spacer Finish : Black/ZP/BNP to Order.

SIO - 417 MOPED AXLE

Moped Axle Dia 11 X 145 mm (Set of 15) Finish : Black/ZP Available To Order.

SIO-418

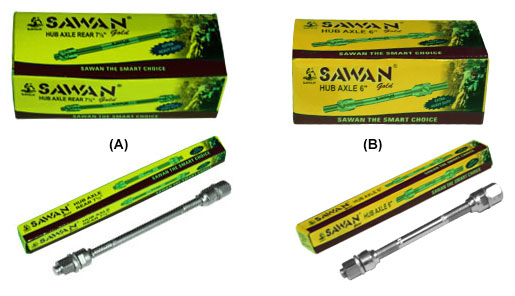

SIO 418 HUB AXLE SAWAN GOLD

(A) Hub Axle 3 / 8'' x 7-1/2/'' BNP Sawan Gold
(B) Hub Axle 3 / 8' x 6'' ' BNP Sawan Gold


SIO-421 SIO-422 SIO-423

SIO - 421 HUB STEPS

5/16" & 3/8" X 26TPI. Length & Colour to Order. All Steel & Aluminium also available to order.

SIO - 422 HUB CUP

With or Without Collar.Rear : 29, 29.5, 30, 30.5 mm Front : 23.5, 24, 24.5, 25 mm. Finish : BNP / Black

SIO - 423 HUB CONES

(A) Rear cone 3/8'', x 26 TPI for hub spindle
(B) Rear cone 3/8'', x 26 TPI for "A" Model
(C) Rear cone 3/8'' x 26 TPI
(D) Front cone 5/16'' x 26 TPI Finish: BNP / Black / B & W / ZP / BNP

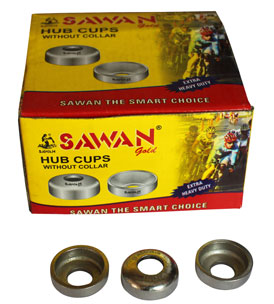

SIO- 422N HUB CUP SAWAN GOLD (HEAVY DUTY)

With or Without Collar.Rear : 29, 29.5, 30, 30.5 mm Front : 23.5, 24, 24.5, 25 mm. Finish : BNP / Black
Hub Cup Without Collar Hub Cup With Collar
