| SIO-676 |
SIO-677 |
SIO-678 |
SIO - 676
B.B. Axle Thomson set of 9 cottered 35m/m, 3/16" x 10 Balls grooved Axle, Length - 150mm.
SIO-677
B.B. Axle cottered Type. Centre Black.
SIO - 678
B.B. Axle cottered Type full BCP.. |
| |
|
|
 |
 |
 |
| SIO-679 |
SIO-680 |
SIO-681 |
SIO - 679
B.B. Axle cottered Type full Black.
SIO - 680
B.B. Axle cotterless bolt type.
SIO - 681
B.B. Axle cotterless nut type. |
| B.B. Axle Cotter Less (Bolt Type, Nut Type) Black or BCP. |
| 34 |
54 |
40 |
128 |
| 35 |
57 |
40 |
132 |
| 32 |
55 |
35 |
122 |
| 35 |
54 |
39 |
128 |
Bolt type Otto Black or BCP Finish More Common Sizes are Given
in the Chart here,
But Any Size Can Be Made According to The Buyer's Requirement. |
|
| |
|
|
 |

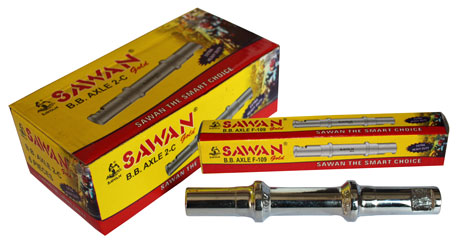

| SIO - 682 B.B. AXLE BCP (PREMIUM) SAWAN GOLD |
B.B. AXLE
Manufactured From Low Carbon Steel, Tempered, Ground and Plated Zinc or Chrome. Also Available Auto Black or Centre Black, Ends Ground Finish |
| A-8 / No.12 |
34.5 |
61.5 |
45 |
141 |
Min. 15.65
Max. 15.76 |
| 2-C / F-109 |
37 |
54 |
46 |
136 |
| Y-3 |
40 |
52 |
49 |
141 |
| Y-5 |
36 |
54 |
46 |
136 |
| Y-16 |
36 |
57 |
46 |
139 |
| SLR |
36 |
55 |
47 |
138 |
MINI
|
51 |
56 |
51 |
158 |
| MX |
45 |
55 |
45 |
145 |
|
| |
|
|
 |
 |
 |
| SIO-691 |
SIO-692 |
SIO-693 |
| |
|
|
SIO - 691 PHILLIPS TYPE
34.8 X 24TPI, BSCY RH + LH Threads Finish : BCP/ZP/Black to order.
SIO - 692 RALEIGH TYPE
34.8 X 24TPI or 26TPI BSCY RH + LH Threads Finish : BCP/ZP/Black to order.
SIO - 693 FRENCH TYPE
35 mm X 24TPI, 1mm Pitch RH + LH threads 36 mm X 1 mm pitch ISO metric, RH & RH threads.
Finish : BCP/ZP/Black to order.
|
