Bicycle Parts / Chain , Chainwheel & Chainwheel Freewheels / Manivelles Et Plateaux / Catalinas


SIO-301	SIO-301G	SIO-302
SIO-301 CHAINWHEEL JAPAN CUT BCP For 1/2" x 1/8" chain 28, 32, 40, 42, 44, 46, 48 & 52T. Crank Sizes : 4", 5", 6", 6.1/2", 6.3/4" and 7"BCP finish. ( Powder Costed Finish to Order ) SIO-301G CHAINWHEEL MTB/BMX WITH STEEL GUARD For 1/2" x 1/8" chain 28, 32, 40, 42, 44, 46, 48 & 52T. Crank Sizes : 4", 5", 6", 6.1/2, 6.3/4" and 7" (Powder Coated Finish / PVC Guard to Order). SIO-302 CHAINWHEEL BIRD HEAD For chain 1/2" x 1/8". Available in 44, 46, 48 & 52T.. Crank sizes : 6.1/2, 6.3/4" and 7", BCP Finish.


SIO-303	SIO-304	SIO-305
SIO-303 CHAINWHEEL "SAWAN CUT" For chain 1/2" x 1/8", 1/2" x 3/32". Available in 44,46, 48T, Cranksizes : 6.3/4" and 7", BCP Finish. SIO-304 CHAINWHEEL ITALIAN TYPE BCP For chain 1/2" x 1/8" or 1/2" x 3/32".Available in 40, 44, 46 and 48T. With Metric Threads. Crank sizes : 6", 6.1/2, 6.3/4" and 7" BCP Finish SIO-305 CHAINWHEEL UTILITY CUT For 1/2" x 1/8" .Available in 40, 44, 46 and 48T. With Metric Threads. Crank sizes : 6", 6.1/2, 6.3/4" and 7" (Also available in 1/2 X 3/32" on order).


SIO-306	SIO-307	SIO-308
SIO-306 DOUBLE CHAINWHEEL For chain 1/2" x 3/32" Cottered With Steel Chainguard BCP/Black Powder Coated in 40/48T and 42/52 Crank Sizes : 6.1/2" and 6.3/4". SIO-307 TRIPPLE CHIANWHEEL COTTERED (COTTERLESS TO ORDER) For 28 x 38 x 48T x 170 MM. 26 x 36 x 46T x 170 MM. With/Without Chainguard To Specify, Cotterless & Cottered to Order. Powder Coated ( BCP Finish to Order ). SIO-308 TRIPPLE CHAINWHEEL For 28/38/48T or 24/34/42T x 170 MM. Black/ Crank Grey plastified Crank with plain guard. For 1/2" x 3/32" Chains.


SIO-309	SIO-310	SIO-311
SIO-309 TRIPPLE CHAINWHEEL (ORANGE) For 28/38/48T or 24/34/42T x 170 MM. Crank & plain guard. For 1/2" x 3/32" Chains. SIO-310 TRIPPLE CHAINWHEEL ( BLACK PLASTFIED ) For 28/38/48 x 170 MM Normal. Crank With Ring Type Guard for 1/2 x 3/32" Chains. SIO-311 TRIPPLE CHAINWHEEL For 24/34/42 Grey Plastified 170 MM Altous Crank Dual. Index With Ring Type Guard For 1/2" x 3/32" Chains.


SIO-312	SIO-313	SIO-314
SIO-312 TRIPPLE CHAINWHEEL For 28/38/48T x 170 MM Fish Type Steel Crank BCP With Guard BCP or Black SIO-313 TRIPPLE CHAINWHEEL OPC 28 /38/48T For 1/2" x 3/32" Chains. other combinations also available to order. SIO-314 ONE PIECE OPC CRANK With B.B. Fittings BCP finish for single, Double and Triple OPC Chain Wheels to order.

SIO - 320

SIO-325

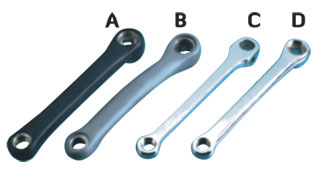

SPARE CRANKS

(a) Black Plastified
(b) Grey Plastified
(c) Cottered BCP
(d) Cotterless BCP

COTTER PINS

(a) 9.5 Crank Dia/ 42 MM Length. (b) 9.00 Crank Dia/ 42 MM.
(c) 8.5 Crank Dia/ 42 MM, Complete with Nut & Washer ZP Finish. (d) 10 Crank Dia/ 42 MM Length.
(e) 10.5 Crank Dia/ 42 MM Length
Complete with Nut & Washer CP/BCP Finish.
Flanged Nut Available to order.


Bicycle Parts / Freewheels & Freewheels Parts

SIO-351	SIO-352	SIO-353
SIO-351 16T SINGLE SPEED Single Speed 16T Available in 1/2" x 1/8", Both half Balls and Full Balls, Black/BCP/Golden. Available in British/Metric Threads. 34.80 x 24 TPI, 34.70 x 1mm Pitch (French), 35.00 x 1mm Pitch (French). SIO-352 18T SINGLE SPEED Single Speed 18T Available in 1/2" x 1/8", Both half Balls and Full Balls, Black/BCP/Golden. Available in British/Metric Threads. 34.80 x 24 TPI, 34.70 x 1mm Pitch (French), 35.00 x 1mm Pitch (French). SIO-353 20T SINGLE SPEED Single Speed 20T Available in 1/2" x 1/8", Both half Balls and Full Balls, Black/BCP/Golden. Available in British/Metric Threads. 34.80 x 24 TPI, 34.70 x 1mm Pitch (French), 35.00 x 1mm Pitch (French)..


SIO-354	SIO-355	SIO-356
SIO-354 THREE SPEED 1/2" X 3/32" Full Steel Balls Available in 16-18-20T, 16-18-22T& 16-19-22T. Black/Golden/BCP. SIO-355 FIVE SPEED 1/2" x 3/32" Full Steel Balls Available in (a)14-16-18-20-22T. (b)14-17-19-21-24T., (c)14-16-18-21-24T. (d)14-17-20-24-28T., (e)14-17-20-23-26T. Black/Golden/BCP. SIO-356 SIX SPEED 1/2" x 3/32" Full Steel Balls Available in (a)14-16-18-20-22-24T. (b)14-16-18-20-24-28T. (c)14-17-20-24-28-32T. (d)14-16-18-21-23-26T. (e)14-17-20-23-28-30T. Black/Golden/BCP.


SIO-357	SIO-359	SIO-360
SIO-357 SEVEN SPEED HYPERINDEX SIO-359 SEVEN SPEED 1/2" X 1/32". Full Steel Balls Available in (a)14-16-18-20-22-24-28T (b)14-16-18-20-24-28-32T Black/Golden/BCP Finish. SIO-360 OPENER FOR MULTISPEED FREEWHEELS (a) Pin Type (b) Groove Type


Bicycle Parts / Chains / Chaines / Cadenas



SIO-366

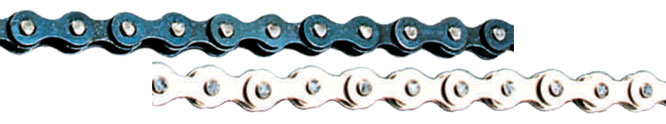

CHAINS For Light Weight Frame, Made From Pressed Sheet Natural Finish. (a) 1/2 X 1/8" X 106, 108, 112, 114 Links. (b) 1/2 X 1/8" in Running Length (in Meters) (c) 1/2 X 3/32" X 116 Links (Normal & Index). (d) 1/2 X 3/32" in Running Length (in Meters) Size to Order.


SIO-367	SIO-374
CHAIN LINKS Chain Connecting Links. 1/2 X 1/8", 1/2 X 3/32", 1/2 x 3/16	CHAIN ADJUSTER Open/Close ends, ZP 1/4" X 26TPI or 6mm X 10 mm for 3/8", 11mm & 12mm.
