Bicycle Parts / Brake & Brake Parts / Freins Sur Jante / Frenos De Varilla |
 |
 |
 |
| SIO-611 |
SIO-612 |
SIO-613 |
SIO-611 CALIPER BRAKE SLR
Caliper Brake SLR Steel Made, Side Pull Type. With Forged Steel Levers. Size : 61-80. Finish : BCP/Colour to Order. Cable wire size : 20” X 44”. Also Available : 23" X 70"
SIO-612 CALIPER BRAKE BMX /MTB
Caliper Brake MTB/BMX Steel made. Side Pull Type with Levers. Size : 75-95. Finish : BCP/Colour to Order. Cable wire size : 20” X 44”. Also Available : 23" X 70"
SIO-613 CALIPER BRAKE FRENCH
Caliper Brake FRENCH Steel Made. Side Pull Type with Levers. Size : 67-91. Finish : Colour to Order. Cable wire size : 20” X 44”(Gents) 20” X 59”(Ladies). Also Available : 23" X 70" |
| |
|
|
 |

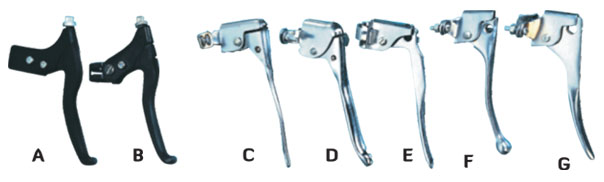

| SIO-614 BRAKE LEVERS |
(a) Full Plastified with Spring Action., (b) Steel & PVC with Spring Action.
(c) Sheet, French., (d) French New., (e) Solid BMX. (f ) Solid Ball Type., (g) Solid SLR.
|
| |
|
|
|
 |
 |
| SIO-616 |
SIO-617 |
SIO-616 BRAKE SET MTB CANTILEVER
(a) Levers Left & Right Plastic Coated. (b) Inner & Outer Cables. (c) Rear Bracket with Adjuster. (d) Cable Hanger.
(e) Allen Screw for Pivot Pin. (f ) Cantilever.
SIO-617 V. BRAKE
V. Brake Complete Plastic Moulded Black.
|
| |
 |
 |
| SIO-621 |
SIO-622 |

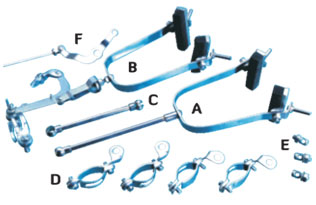

SIO-621 RIM BRAKE SET PH/TYPE
(a) Front Stirrup with Tube with Brake Shoe.
(b) Rear Stirrup with adjustable Bolt & Bottom Leg unit with Clip & Spring.
(c) Rear Brake Tube with Screw.
(d) Brake Clip Front with Screw & Nuts.
(e) Brake Button with Nut & Washer.
(f ) Rear Brake long Connecting rod with Bell Crank Lever.

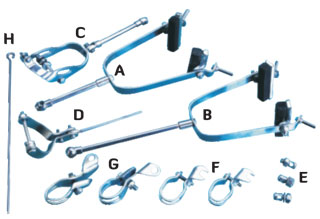

SIO-622 RIM BRAKE SET RL/TYPE
(a) Front Stirrup with Tube with Brake Shoe.
(b) Rear Stirrup with Tube with Brake Shoe.
(c) Top Bell Crank with Pin & Tube.
(d) Bell Crank with End Pin.
(e) Brake Button with Nut & Washer.
(f ) Brake Clips Rear with Screw & Nuts.
(g) Brake Clips Front with Screw & Nuts.
(h) Rear Brake long Connecting Rod with Round Ends.
|
| |
 |
 |
| SIO-623 |
SIO-625 |
SIO-623 PH. BALOON TYPE BRAKE SET
(a) Front Stirrup with Tube with Brake Shoe.
(b) Rear Stirrup with Adjustable Bolt & Bottom Leg Unit with Clip & Spring.
(c) Rear Brake Tube with Screw.
(d) Clip Fastening 'L' Shape Top Bell Crank Lever.
(e) Brake Button with Nut & Washer.
(f ) Brake Clip Rear with Screw Nut.
(g) Rear Brake Long Connecting Rod.

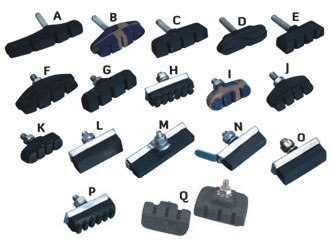

SIO-625 BRAKE SHOES
Brake Shoe for SLR/BMX/FRENCH, PH./RL. and for Cantilever Brake With Rubber Block.

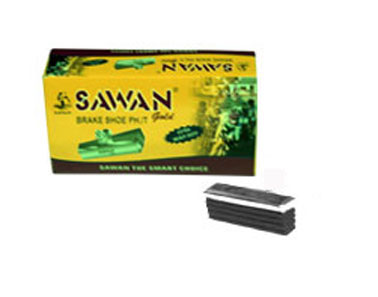

SIO-626 BRAKE SHOES PH/T SAWAN GOLD
Made of 19.G strip with Gold plated Nylon Rubber 55 mm H/D
|
|
| SIO-626 |
| |
|
|
